SpectraLink Corporation Installation and Operation

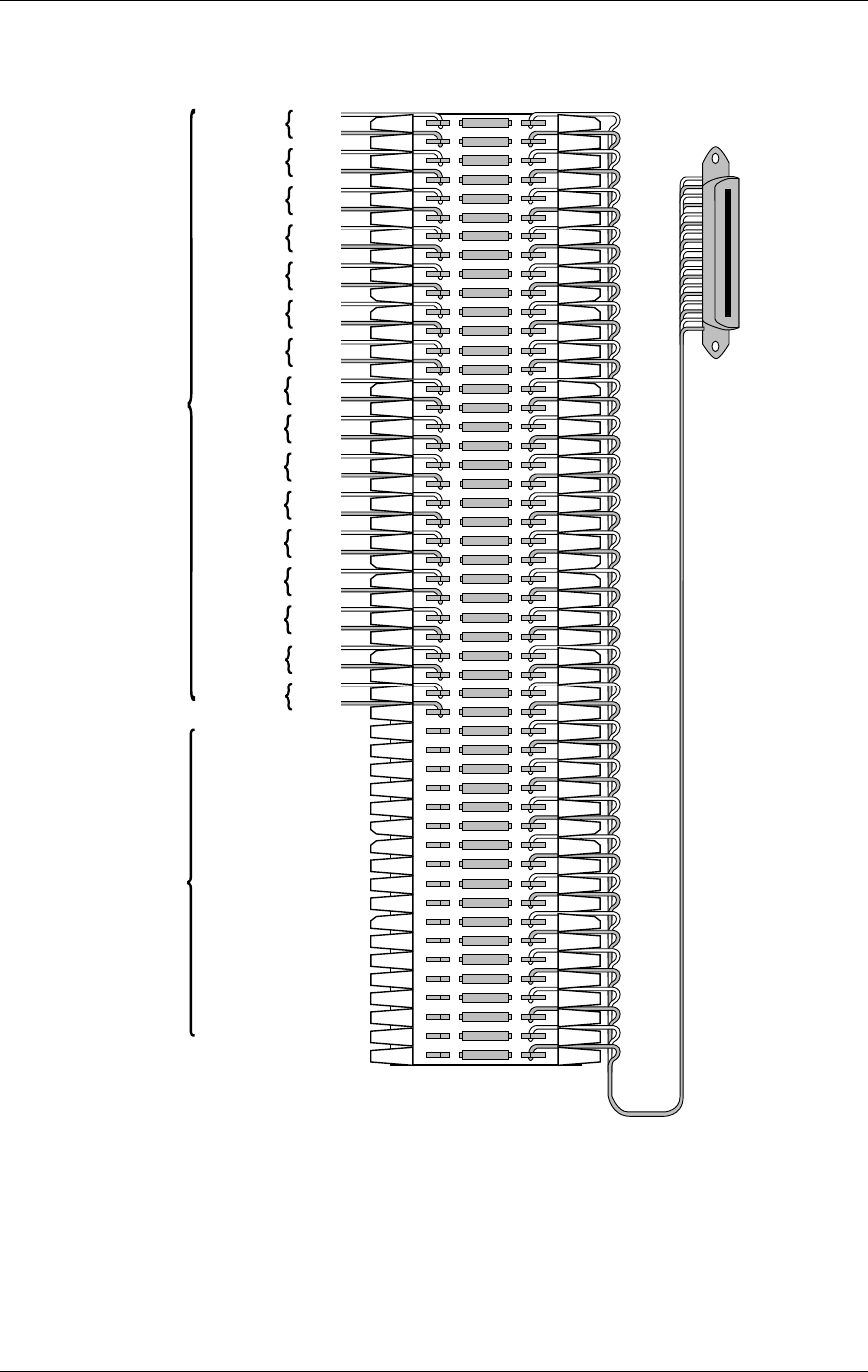

Link WTS – Link 150 M3 MCU
Line 1 RX
tip
ring
Line 2 RX
tip
ring
Line 3 RX
tip
ring
Line 4 RX
tip
ring
Line 5 RX
tip
ring
Line 6 RX
tip
ring
Line 7 RX
tip
ring
Line 8 RX
tip
ring
Line 9 RX
tip
ring
Line 10 RX
tip
ring
Line 11 RX
tip
ring
Line 12 RX
tip
ring
Line 13 RX
tip
ring
Line 14 RX
tip
ring
Line 15 RX
tip
ring
Line 16 RX
tip
ring
25 PAIR MALE
CONNECTOR
CABLE TO
MCU
CONNECTOR B
Telephone
Ports
Unused
Pairs
Note:
RX denotes
data received by
the telephone
system from Link 150
DO NOT
USE
Four-wire Connector B
PN: 72-0075-01-F.doc Page 22
