WALL MOUNTING INSTRUCTIONS:
I.
2.
3.
4.
5.
6.
7.
8.
9.
Remove up the remote handset from the base.
Turn the phone upside down so the underside of the phone faces you.
Press down and out on the two tabs located on top of the wall/desk adapter and remove.
Rotate the wall/desk adapter a half turn and snap it into the wall mount position as shown below.
If mounting over a telephone wall jack, plug the supplied short 7 inch length telephone cord into
the
LI/L2
jack on the telephone. Thread the
LI/L2
line cord through the slot on the backside of
the phone.
If wall mounting using screws, plug the supplied 7 foot long telephone cord into the L I/L2 jack on
the telephone/
Connect the telephone line cord to the wall telephone outlet.
Slip the telephone base onto the wall, lining up the wall mounting holes over the wall jack plate
posts or screws. Slide the telephone base down so the it is firmly in place.
Return the remote handset to the telephone base.
IO. Insert the AC adapter cord into the ADAPTER jack on the top of the phone.
I I. Plug the other end of the AC adapter into the wall AC (electrical) outlet.
12.
If you more that two lines installed, you can connect Lines 3 and 4 to a second telephone jack.
Plug the second supplied 7 foot ‘long telephone line cord into the
L3/L4
jack.

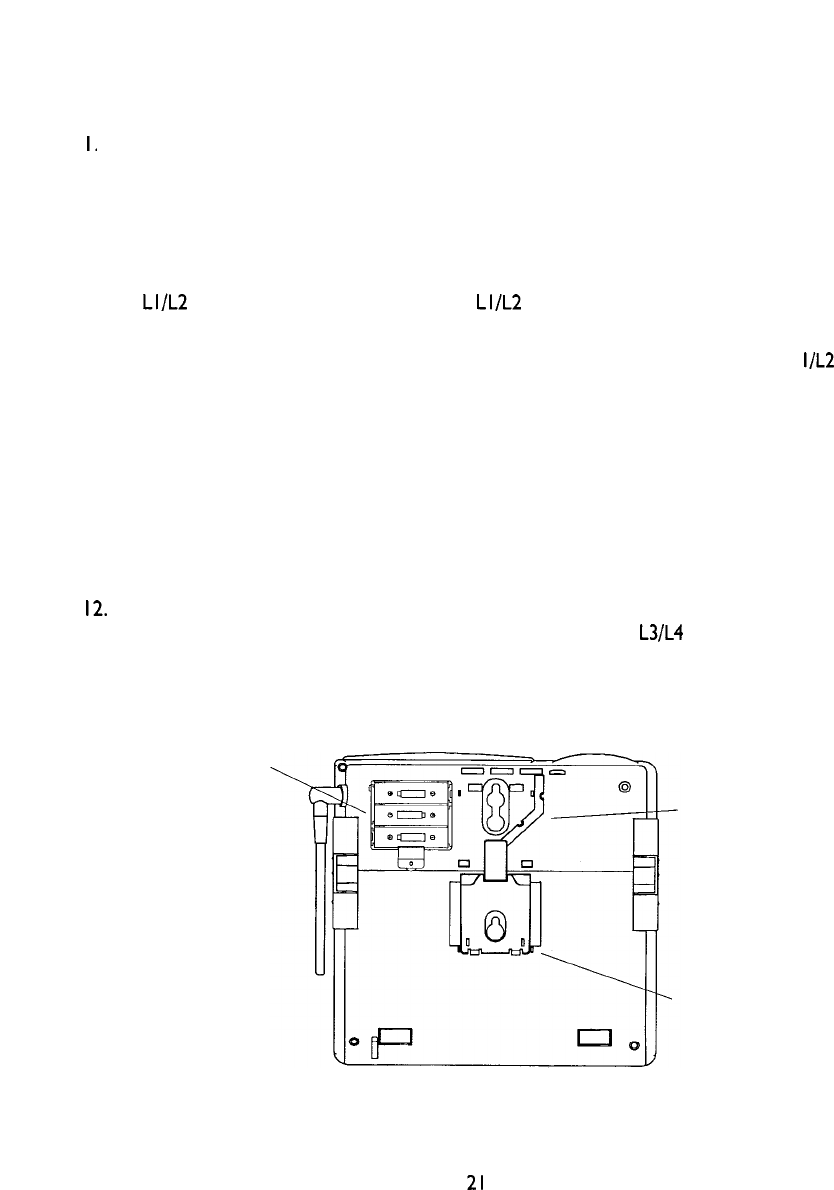

Model IBM-4900 Bottom View
BATTERY COMPARTMENT
SHOWN WITH THE DOOR
REMOVED
RECESS FOR SHORT
TELEPHONE CORD
WALL MOUNTING/DESK
ADAPTER SHOWN IN WALL
MOUNTING POSITION
21
