tweeter provides
the highest
directional
response in this
direction.
See figure 5. If
you require to
disperse the
sound in a 360-
degree pattern
you must
position the line
in the tweeter in
a horizontal
position.

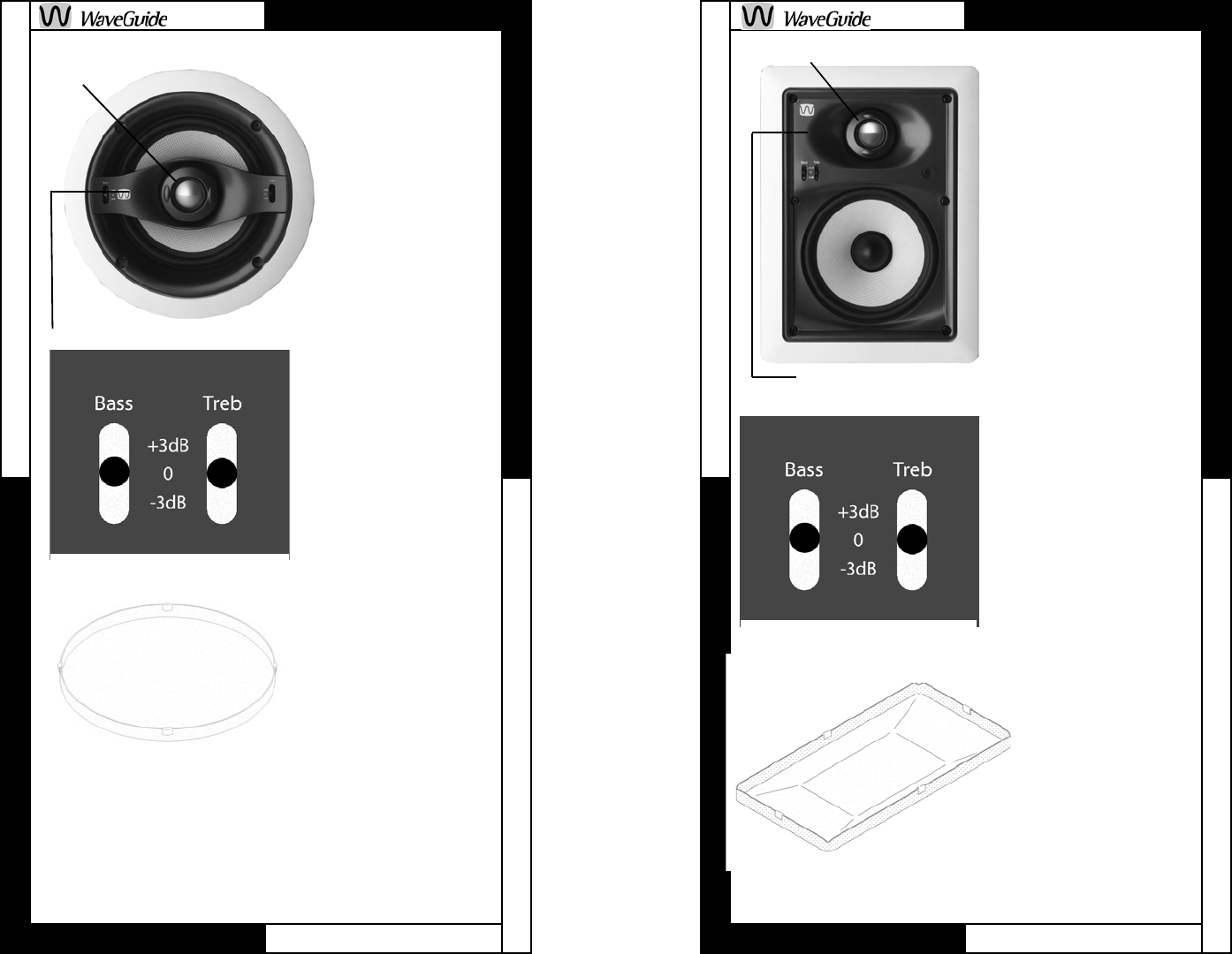

See figure 6. The
combination of switch
settings allow you to
boost and cut bass
and treble +/-3dB.
Adjust the speaker
level to accommodate
for room acoustics.
Step 7. Divide each
adhesive bead strip
in half. (Adhesive
bead strips are in the
clear self-closing
bag). Place strips on
the edge of the grille
as shown in figure 7.
Reinstall the grille on
the speaker.
Step 8. Adhere the WaveGuide logo to the grille
with the pressure sensitive tape.
Repeat the steps for the second speaker.
Page 10
FIGURE 6
FIGURE 5
FIGURE 7
crease position
tweeter
horn
TM
Page 15
Step 7. Divide each
adhesive bead strip
in half. (Adhesive
bead strips are in the
clear self-closing
bag). Place strips on
the edge of the grille
as shown in figure
14. Reinstall the grill
on the speaker.
Step 8. Adhere the
WaveGuide logo to
the grille with the
pressure sensitive
tape.
Repeat the steps for
the second speaker.
Tweeter horn
Crease position
FIGURE 12
FIGURE 13
FIGURE 14
TM
