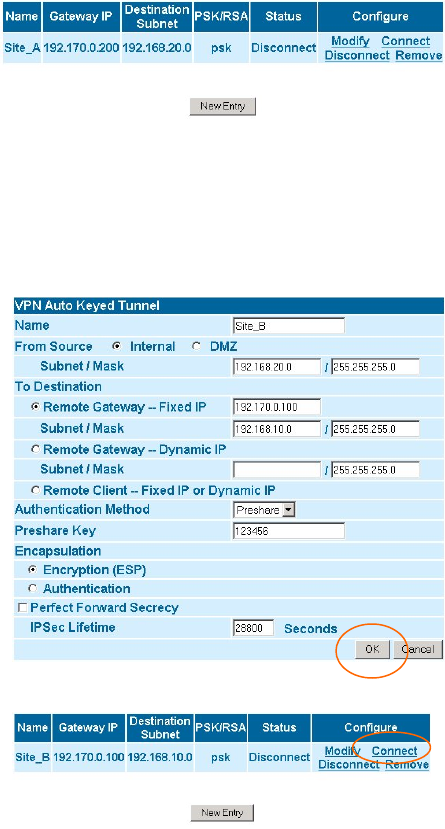

There should now be a VPN
Policy created for Site A.
Site A is now complete, we
will now configure Site B with the other DFL-300. Follow the same steps
previously with Site A to create a VPN policy. Please change the appropriate
IP information.
Name: Site_B
From Source: Internal
Subnet/Mask:
192.168.20.0/255.255.255.0
Remote Gateway – Fixed IP:
192.170.0.100
Subnet/Mask:
192.168.10.0/255.255.255.0
Authentication Method:
Preshare
Preshare Key: 123456
Encapsulation: Encryption (ESP)
Click OK
There should now be a VPN
policy created for Site B.
After the VPN policies have been created for the two remote locations, click
Connect at both Sites to enable the VPN policy. The two remote locations
will authenticate and the VPN status should now say Connected.
Congratulations, you have created a simple IPSec VPN tunnel. Site A and Site
B should now be able to communicate with each other securely over the
Internet. All IP traffic from the two Sites are now encrypted strongly with
168-bit 3DES encryption.
-11-
