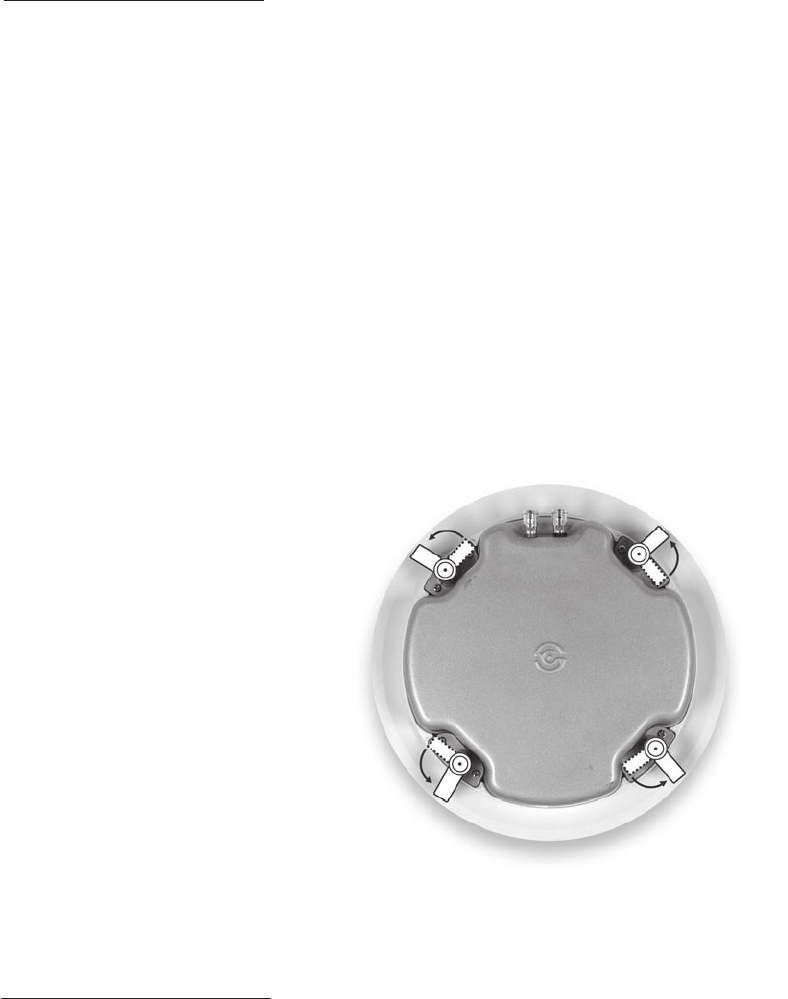

Figure 4
Mounting Feet
SPEAKER INSTALLATION
The unique integral four foot mounting system incorporated into each speaker allows for quick installation following these easy
steps:
1. If the grille is on the speaker, remove it. It may be necessary to push one or two of the mounting screws and its attached
foot towards the baffle and against the inside surface of the grille to force the grille out of its retaining groove.
2. Attach the speaker cable observing the proper polarity at the amplifier and speaker: + to + (red speaker input) and – to
– (black speaker input). Make sure the left channel of the amplifier is connected to the left speaker, and the right chan-
nel is connected to the right speaker. For surround, connect the speaker to the appropriate channel on the amplifier or
receiver.
3. Make sure the mounting feet are turned inward to clear the opening, and insert the speaker into the ceiling. Position the
speaker into the hole. Note: The flange of the speaker is designed to flex and conform to any small imperfections in the
ceiling surface. Tighten the 4 screws on the front of the baffle only enough to make the flange become snug against the
ceiling. As you tighten the screws, the feet automatically flip into an outward position (See Figure 4), and begin to tighten
from the backside, clamping the drywall between the feet and the flange.
CAUTION: Over tightening may warp the baffle, crack the ceiling, cause the flange to distort, and make the grille difficult to
install.
PAINTING THE SPEAKERS
If you plan to paint your speakers, we recommend that it be done prior to installation. If you decide to paint your speakers
sometime in the future, it is best to remove them by simply reversing the steps for SPEAKER INSTALLATION listed above. When
painting the speakers, the paint masks provided in the carton must be installed in place of the grille. The grilles can also
be painted. However, great care should be taken not to clog the holes, as this will greatly reduce the sound quality of the
speakers. Before painting the grilles, remove the material from under the grille. Place this material back in place once the
grille has been painted. SpeakerCraft recommends only light spray painting using 5 parts thinning agent to 1 part paint. Do
not paint the grilles while they are attached to the speaker. If it is necessary to paint the material under the grille, follow the
same procedure used to paint the grilles.
3
