DVD PLAYER
VCR (Video 1) TV or Projector
In/Rec
Out/Play
IN
L R VIDEO
Video S-Video Component Video
Y Pb Pr
Component Video
Y
Pb
Pr
Optical Coax
Cable box or Satellite Receiver Set-Top Box (Video 3)
OUT
L R Video S-Video
Optical Coax
L R Video S-Video
VIDEO CONNECTIONS
Device Connection Options: Recommended connections are shown in red, but connections may be made to best fit your system requirements.The Video 4, Coax 3 and Optical 3 inputs are on the front panel of the receiver.
Device Input Name Audio Input Connections Audio Output Connections Video Connections
CD Player CD CD L/R Inputs, Optical Digital 1 or 2, or Coaxial Digital 1 or 2 Not required Not required
DVD Player DVD Coaxial Digital 1 or 2, Optical Digital 1 or 2, or DVD L/R Inputs Not required DVD Component, Composite or S-Video
VCR Video 1 Video 1 L/R Inputs Video 1 L/R Outputs Video 1 Composite or S-Video Input and Output
Cable Box or Satellite Receiver Video 3 Video 3 L/R Inputs, Optical Digital 3*, or Coaxial Digital 3* Inputs Not required Video 3 Composite or S-Video Input
Audio Recorder Tape Tape L/R Inputs, Optical Digital 1/2** or Coaxial Digital 1/2** Inputs Tape L/R Outputs, Digital Optical** or Coaxial Outputs** Not required
TV or Projector Not applicable Not required Not required Monitor-Out Component, Composite and/or S-Video
*
Check with your cable company to determine whether digital audio is available for all channels. It may be necessary to make BOTH analog and digital connections if it is not.
**
Digital audio recorders only.
250 Crossways Park Drive,Woodbury,New York 11797 www.harmankardon.com © 2003 Harman International Industries, Incorporated Part No. CQE1A200Z

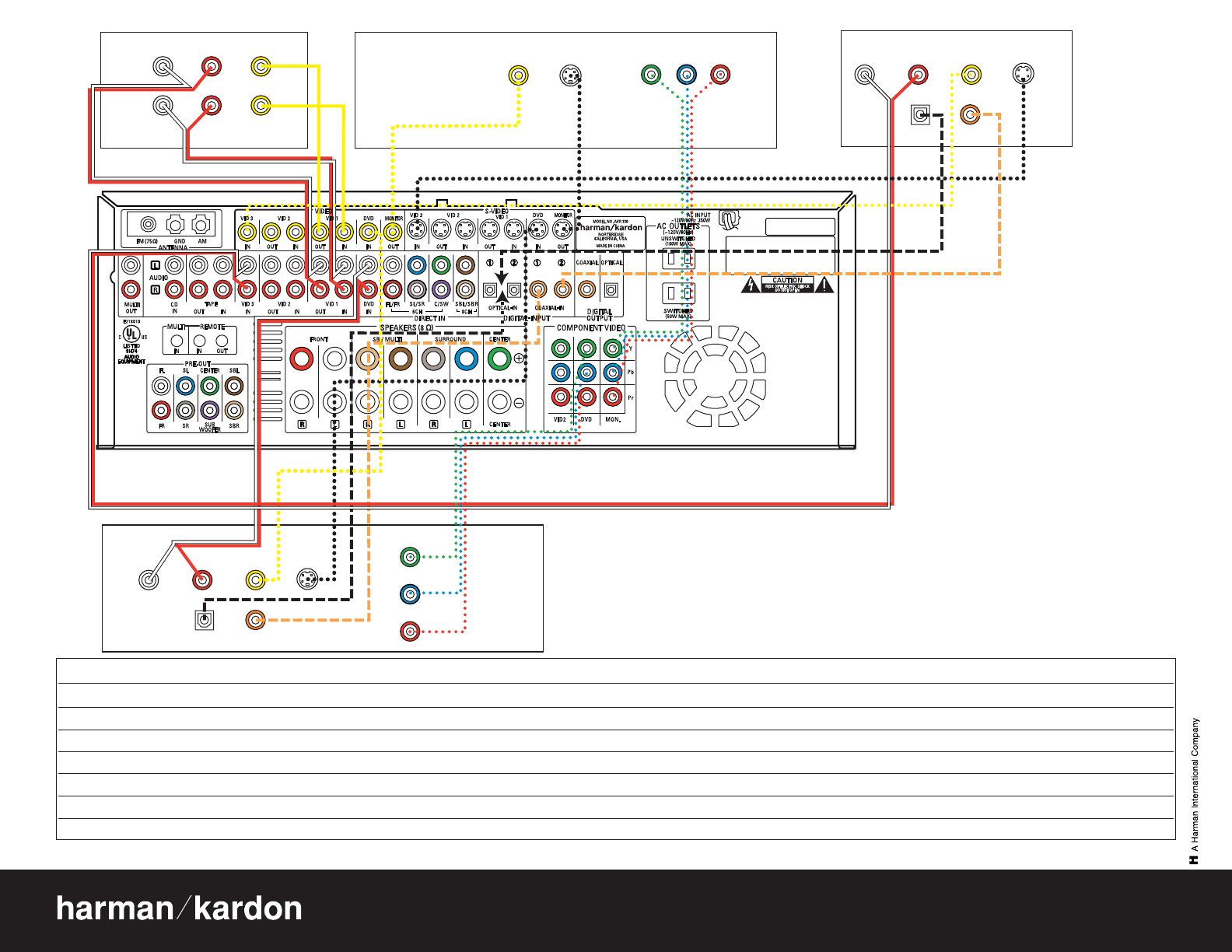

Figure 5 – Video Connections
Dashed lines (––––) indicate coax and optical digital audio connections. Choose either type (but not both) for each
digital audio source.
Dotted lines (
••••) indicate component, composite or S-Video connections. Component video is the preferred connection
when available, but you may use any of the three types (but not more than one).When component, composite and
S-Video sources are connected to the AVR you must also connect all outputs from the AVR to your TV.
