Displacement Follower User’s Manual Version 1.4, April 19, 2004 IM1008
Page 11

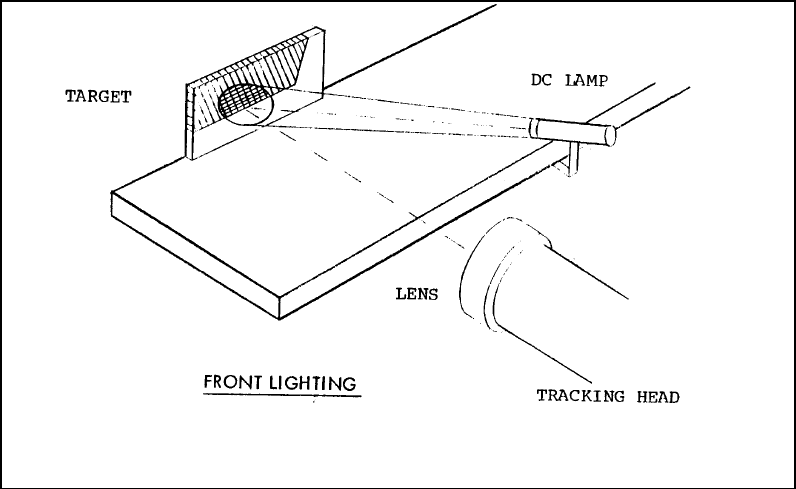

Figure 11
Tracking Prerequisites
Single Axis, Vertical or Horizontal
The target and its motion should be located in the plane that is perpendicular to the optical axis. For successful lock-on, the
target’s width must be greater than 10% of the full-scale measurement range, and its location must be along the tracking
axis.
