CRADLEPOINT IBR600 | USER MANUAL Firmware ver. 3.3.0
© 2011 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 7

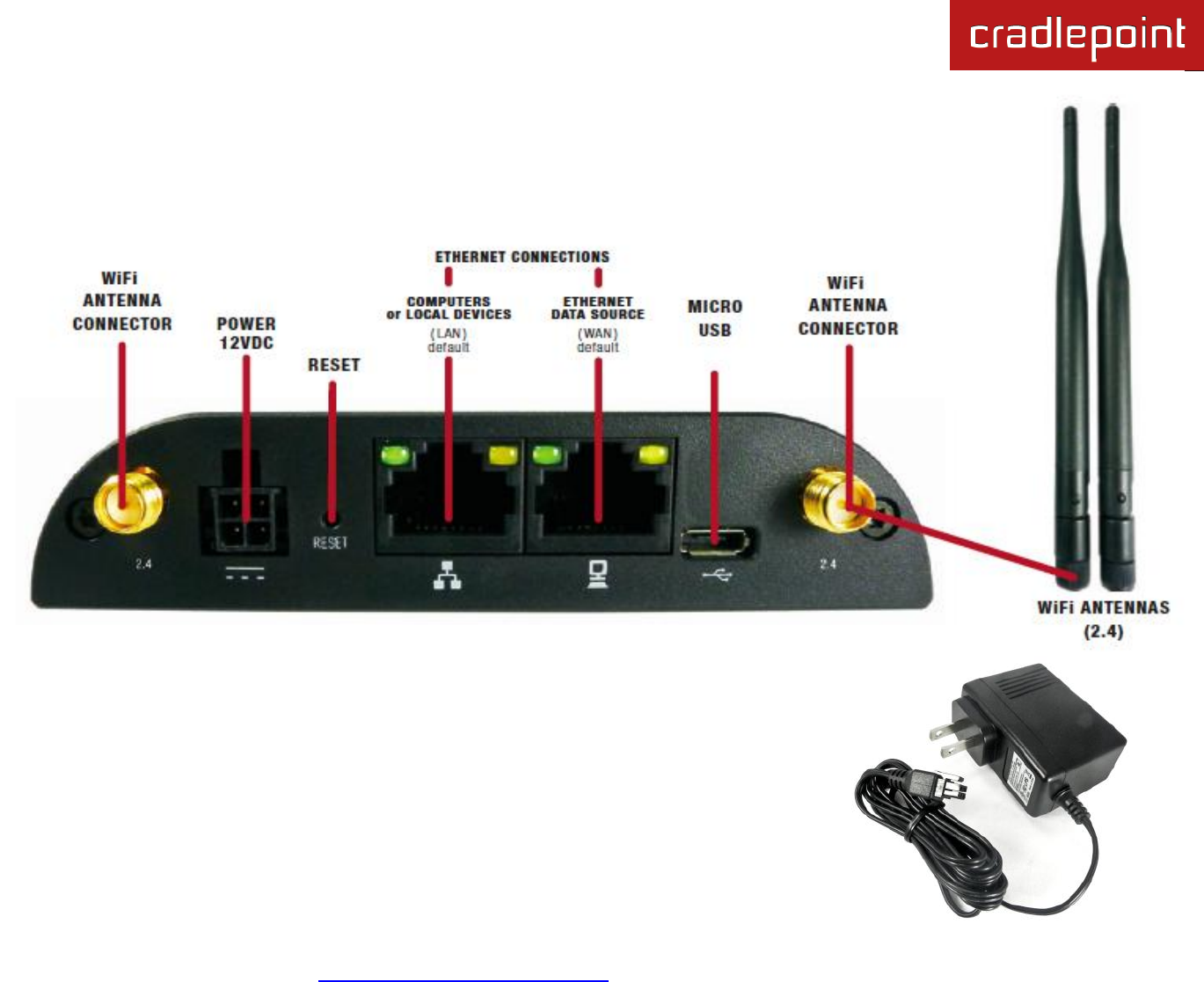

2.1 Ports, LEDs, and Switches
WiFi Antennas: The IBR600 comes with two 2.4 GHz WiFi antennas (Reverse SMA).
These antennas are simple to attach and adjust for maximum WiFi broadcast.
Power 12VDC: The power connector includes two pins for power and two pins for GPIO
(General Purpose Input/Output) functionality. The included power adapter, however,
only connects to the power pins. You will need a separate adapter for GPIO
functionality.
