6

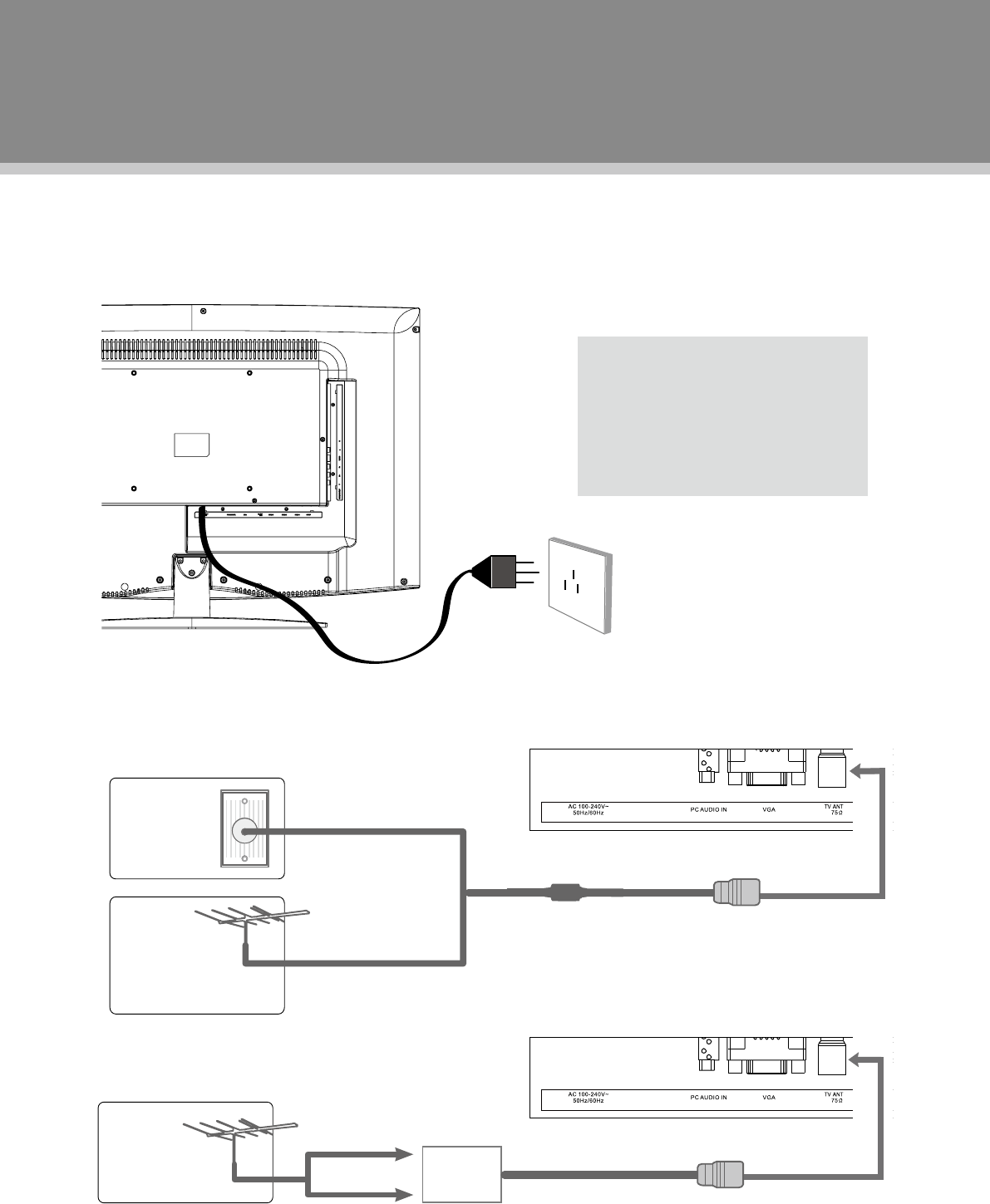

Figure. Cable connections
Power Connection
Insert the power plug into the 110-240V AC wall outlet. If you have difculty inserting the plug, turn it over and
re-insert it.
Antenna Connection
Connect TV RF sources to the antenna port. TV RF signals include: receiving antenna/CATV net. You can
use 75 Ohm coaxial cable to connect outdoor antenna.
Cable Connections
IMPORTANT NOTICE
Be sure to have all necessary 1.
connections properly done before
connect the power supply.
If the product will not be used for a 2.
long period of time, disconnect the
power.
NOTE:
In poor signal areas, to achieve better picture quality it may be necessary to install a signal amplier to •
the antenna as shown above.
If signal needs to be split for two TVs,use an antenna signal splitter for connection.•
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
(VHF, UHF)
Wall
Antenna
Socket
RF Coaxial Wire (75 ohm)
Antenna
UHF
Signal
Amplifier
VHF
