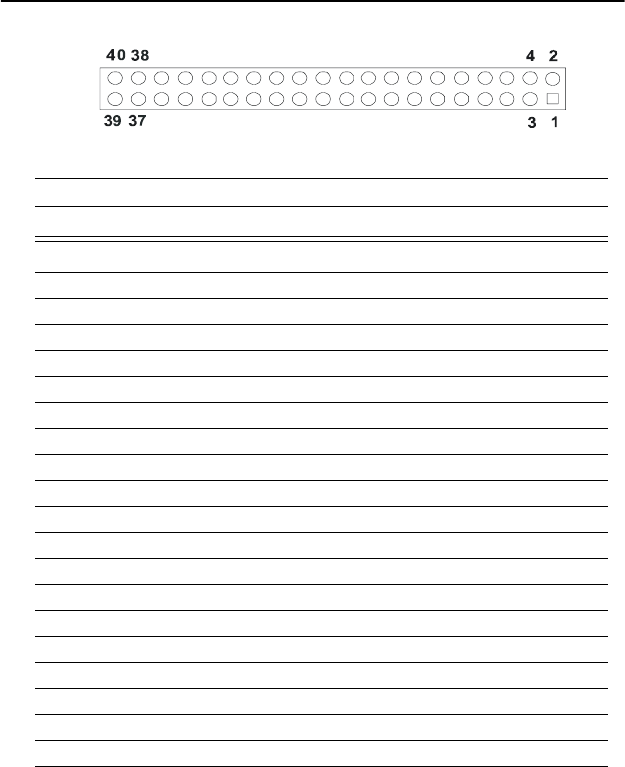

B.15 Flat Panel Connector (CN22)
Table B.15: Flat Panel Connector(CN22)
Pin Signal Pin Signal
1 +5V output
2
+5V output
3 GND 4 GND
5 +3.3V output 6 +3.3V output
7NC 8GND
9 PD0 signal output 10 PD1signal output
11 PD2 signal output 12 PD3 signal output
13 PD4 signal output 14 PD5 signal output
15 PD6 signal output 16 PD7 signal output
17 PD8 signal output 18 PD9 signal output
19 PD10 signal output 20 PD11 signal output
21 PD12 signal output 22 PD13 signal output
23 PD14 signal output 24 PD15 signal output
25 PD16 signal output 26 PD17 signal output
27 PD18 signal output 28 PD19 signal output
29 PD20 signal output 30 PD21 signal output
31 PD22 signal output 32 PD23signal output
33 GND 34 GND
35 FPCLK signal output 36 FLM
37 M 38 LP
39 ENABKL 40 ENVEE signal
Note: The model number of the CN22 socket is
DF13A-40DP-1.25V(Hirose Electric Co., Ltd)
